SUPREME SF85 Insulated Folding Doors

Description

A world-class highly insulated folding door system with bottom-slide operation, which combines minimal aesthetics with outstanding performance, very large dimensions with literally low sight lines, enhanced burglar protection with a very large variety of solutions.

Advantages

Very large dimension in terms of height (up to 4.0m), vent width (up to 1.5m)and total span width
Amazingly reduced sight lines which contributes to the overall minimal design

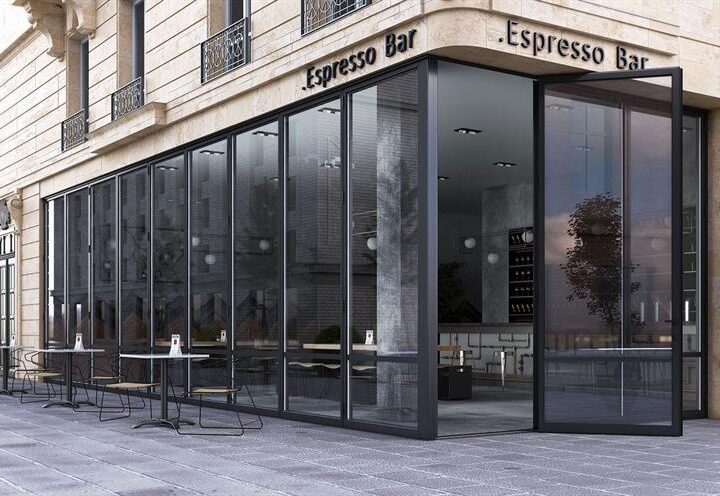

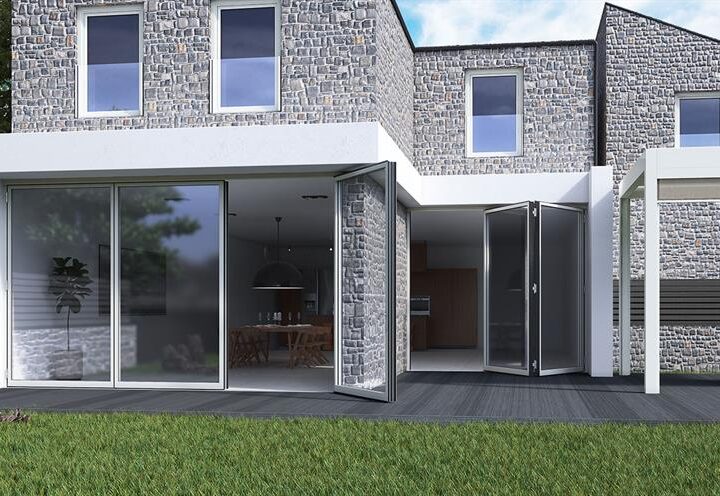

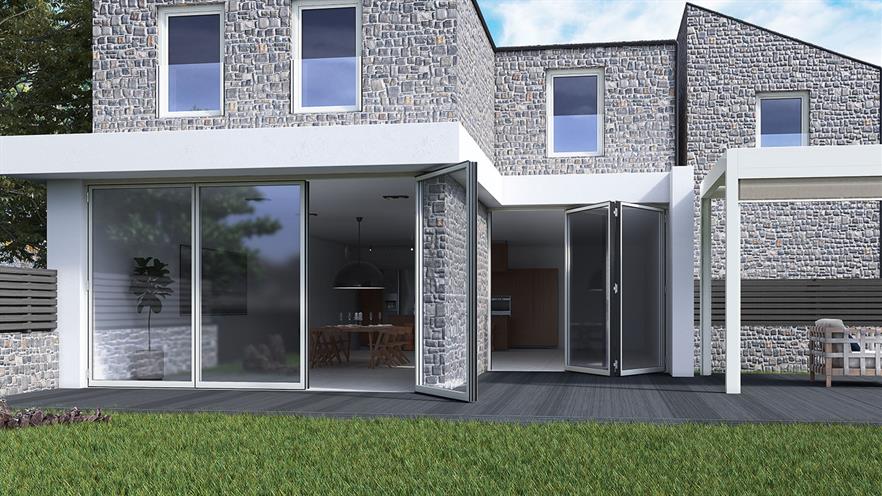

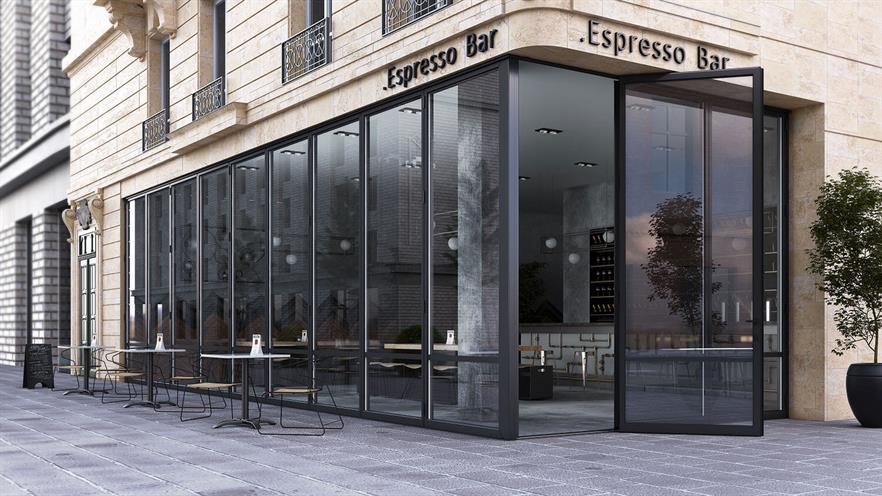

Extensive variety of solutions, with odd and even number of vents, corner construction, semi-structural vent version, inwards and outwards opening
Extreme performance in terms of air permeability, wind load resistance and water tightness

Generic

THERMAL INSULATION
Yes

AESTHETICS
minimal, relatively low sight line

PANEL TYPE
bottom slide

PANEL
aluminium framed panel, semi-structural panel

APPLICATIONS
residential with 1.5m panel width, commercial with 4.0m panel height, high-end projects

Technical Characteristics

SASH WIDTH
85 mm

GLAZING
21-58mm

POLYAMIDE
Double 40mm

EXTRA INSULATING FITTINGS
Alumil energy bar insulation and PE insulation foam

MAIN GASKET
Single from co-extruded EPDM and foam

LOCKING
Quadruple locking latches

VISIBLE ALUMINIUM
105mm

MAXIMUM WEIGHT
200Kg/ vent

MAXIMUM HEIGHT
4,0 m

MAXIMUM PANEL WIDTH
1,5 m

Performance

WATER TIGHTNESS
7A/9Α (with subsill), IFT

AIR PERMEABILITY
class 4, IFT

WIND LOAD RESISTANCE
class C3/B3, IFT

BURGLAR RESISTANCE
WATER TIGHTNESSRC2 IFT & PAS24 (UK)

Performance

ΤHERMAL PERFORMANCE
1.1 W/m²K, IFT

TYPOLOGIES

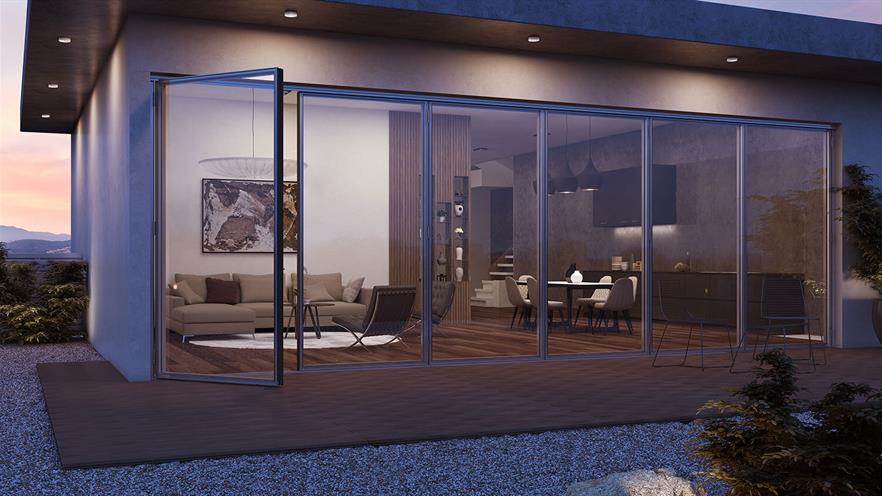

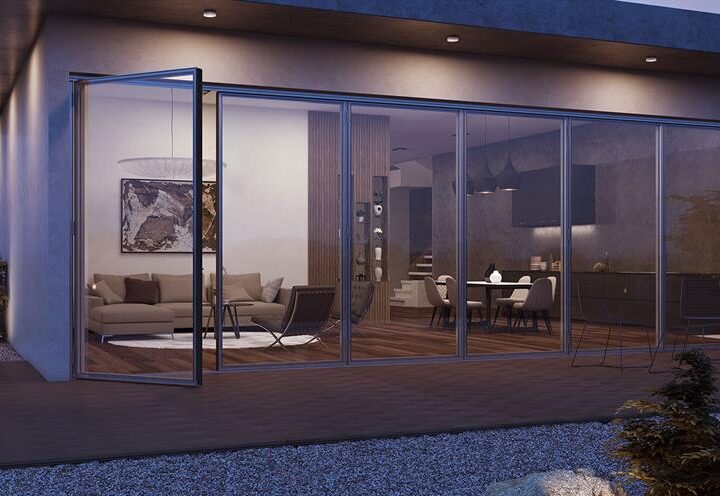

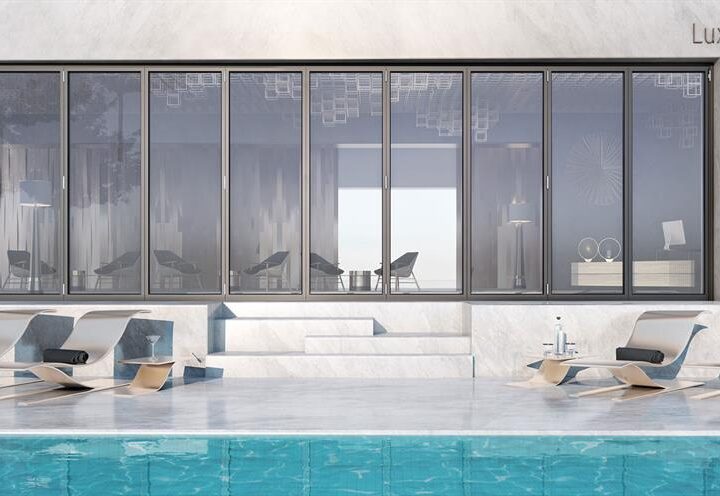

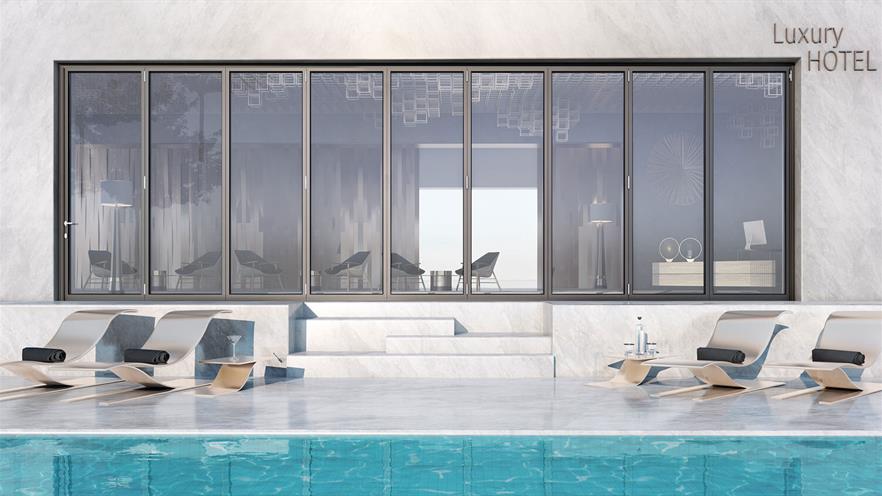

Media Gallery
