Hinged insulated system SUPREME S77
Description
The system SUPREME S77 is ALUMIL’s proposal for advanced insulating casements, which meet the high standards of all advanced markets and incorporate a modern design. It is the ideal solution for projects that require high performance and maximum security.
Advantages
- Modern design
- Very high energy savings thanks to high energy efficiency (Passive House certified)
- High security level

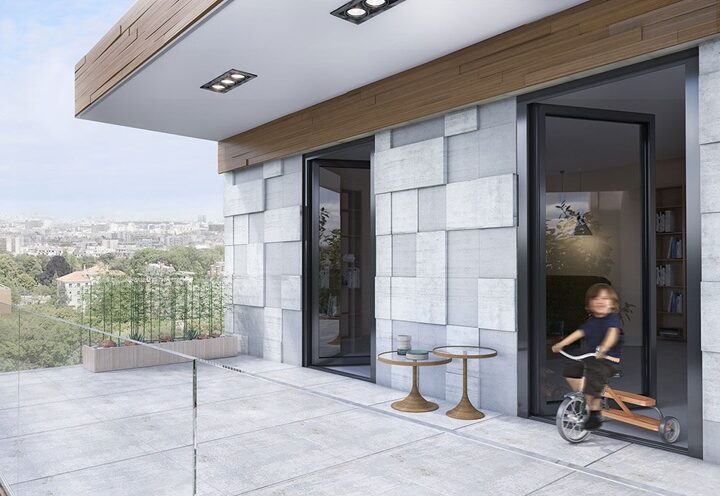

- Ease of access according to the specifications for people with special needs and children
- Wide variety of typologies and solutions
- Special solutions for hotels
- Increased static loads and functionality in case of severe weather conditions
- Exceptional quality with certified performances
- Ease of use and high functionality
- Suitable for Passive House constructions in regions that lie in warm/temperate climate zone
- Exceptional sound insulation
Generic
WINDOW TYPES
Hinged
THERMAL INSULATION
Yes
EXTERIOR SHAPES
Flat, Curved
Technical Characteristics
FRAME DEPTH
77 mm
SASH WEIGHT
up to 180 Kg
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
93 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
122mm
GLAZING TYPE
Double – Triple
MAXIMUM GLAZING THICKNESS
from 24 up to 72 mm
MECHANISM
Euro-groove, Euro-nut
SEALING METHOD
Perimetrical at 3 levels with EPDM & foam EPDM gaskets
MINIMUM THRESHOLD HEIGHT
13 mm
TYPE OF THERMAL INSULATION
Polyamides 40 mm width, ALUMIL Energy bar, Insulation foam
Performance
UF
from 0,85 to 2,42 W/m²K
WATER TIGHTNESS
CLASS E1350
AIR PERMEABILITY
CLASS 4
WIND LOAD RESISTANCE
C5/B5
SOUND REDUCTION
42 dB
BURGLAR RESISTANCE
RC2/RC3
Performance
TYPES OF TYPOLOGY
For all tilt & turn typologies, pivot windows
Typologies
One sash tilt and turn

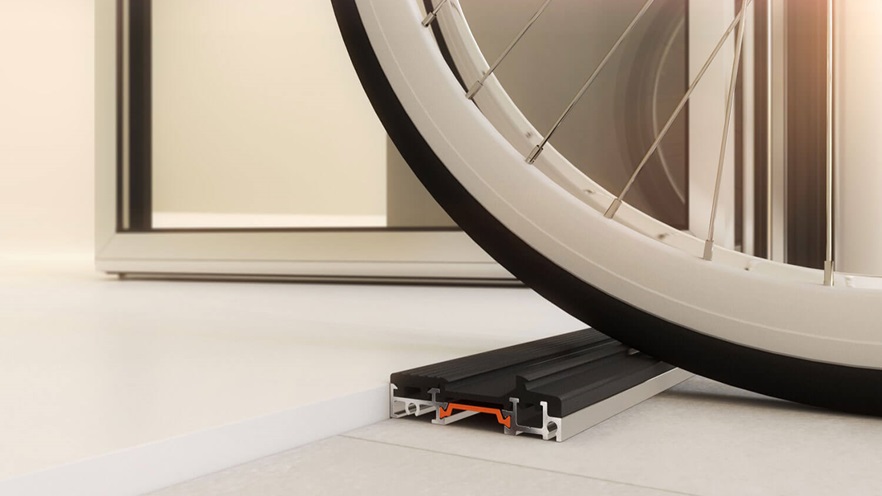

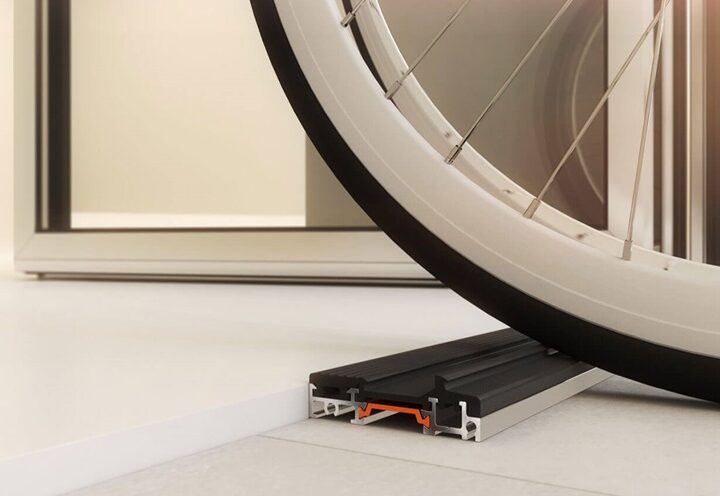

Single tilt & turn casement with P.W.D. low thresold
Double tilt and turn window
Double tilt and turn window with low thresold
Double tilt and turn with light
Double tilt and turn window with fixed light
Double tilt and turn with fanlight
Horizontal pivot window
Vertical pivot window
