Hinged insulated system SMARTIA S67 URBAN
Description
SMARTIA S67 URBAN is a new hinged insulated system of unique aesthetics that ideally combines the industrial look along with top performances.
Advantages
- Excellent value for money
- High energy saving thanks to its high level of thermal performance
- System that fully responds to the constantly growing architectural trend of industrial design.
- Ideal for renovations of old steel windows, combining its special appearance along with all the comparative advantages of an aluminium thermal insulation system.
- Variety of architectural solution and typologies.
- Easy access in accordance with legislation for people with disabilities and children.
- High certified performance, in terms of air permeability and water tightness.
- Easy to use and high functional system.
Generic
WINDOW TYPES
Hinged
THERMAL INSULATION
Yes
EXTERIOR SHAPES
Flat
Technical Characteristics
FRAME DEPTH
105 mm
SASH DEPTH
65 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
85 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
135 mm
GLAZING TYPE
Double – Triple
MAXIMUM GLAZING THICKNESS
from 10 mm up to 44 mm
MECHANISM
Euro-groove
SEALING METHOD
Perimetrical at 3 levels with EPDM gaskets
MINIMUM THRESHOLD HEIGHT
21 mm
TYPE OF THERMAL INSULATION
30mm fiberglass Polyamides, PE Insulation Foam, ENERGY BAR
Performance
WATER TIGHTNESS
E750
AIR PERMEABILITY
CLASS 4
WIND LOAD RESISTANCE
C3/B3
Characteristics
UF
from 1,9 to 2,8 W/m²K
TYPES OF TYPOLOGY
For all tilt & turn typologies
SASH WEIGHT
up to 180 Kg
Typologies
Fixed window
Double fixed lights
One sash tilt and turn
Τilt and turn with fix light on top
Τilt and turn with fanlight
Double tilt and turn window
Double tilt and turn window with fixed light
Double tilt and turn with fanlight
Double tilt and turn with fixed lights sideways
Media Gallery

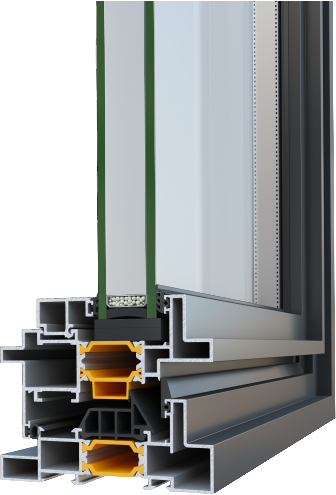

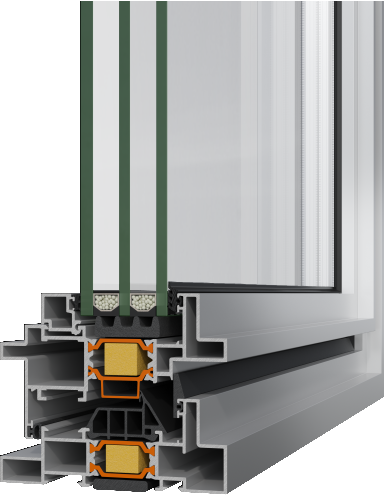

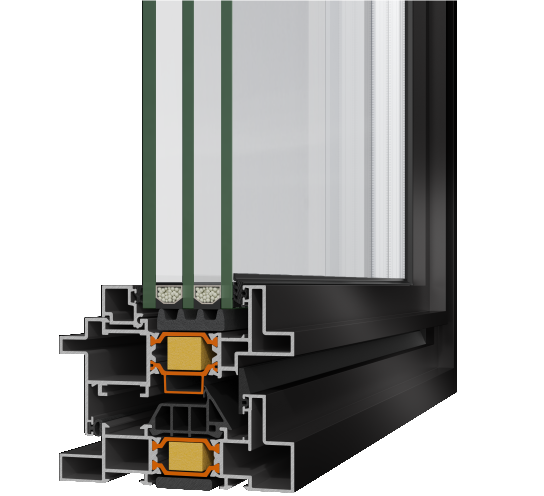

Sections
