Automated Sliding insulated system SUPREME S650 e-MOTION

Description

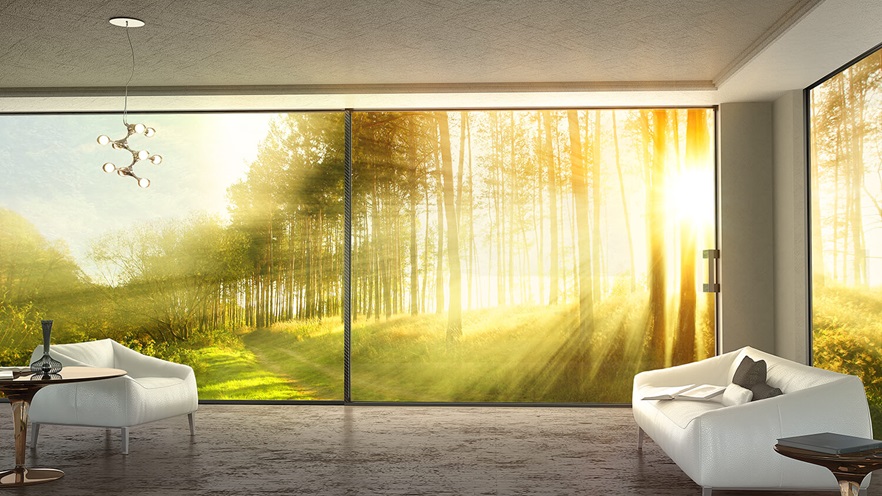

The SUPREME S650 e-MOTION is the automated version of the SUPREME S650 PHOS series. The elegant design and the electrical automation offering maximum ease of use, make it the perfect solution for projects that require impressive wide spans with the uninterrupted view, as well as perfect comfort.

Advantages

Maximum ease of use and high functionality thanks to the automatic motion
Enhanced natural light thanks to the system's minimal design and the wide glazing surfaces
High energy savings thanks to exceptional energy efficiency
High security level
Extremely safe use thanks to the system's sensors and to safe operation in case of blackout
Exceptional sound insulation

Ease of access according to specifications for people with special needs and children
Wide variety of typologies
Ideal for extremely wide spans
Exceptional quality with certified performances
Increased static loads and functionality in case of severe weather conditions

Generic

WINDOW TYPES
Sliding

THERMAL INSULATION
Yes

EXTERIOR SHAPES
Flat

Technical Characteristics

SASH DEPTH
67,4 mm

MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
Concealed profiles

MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
25 mm

GLAZING TYPE
Triple

MAXIMUM GLAZING THICKNESS
up to 46 mm

MECHANISM
ALUMIL

SEALING METHOD
Perimetrical with tri-fin brushes

MINIMUM THRESHOLD HEIGHT
hidden profiles

TYPE OF THERMAL INSULATION
Polyamides, PVC

Performance

UW
1,1 W/m²K

WATER TIGHTNESS
CLASS E1050

AIR PERMEABILITY
CLASS 3

WIND LOAD RESISTANCE
C3

BURGLAR RESISTANCE
RC2

Characteristics

TYPES OF TYPOLOGY
Double horizontal sliding sashes, Meeting stile, Corner typologies

SASH WEIGHT
up to 1000 Kg
